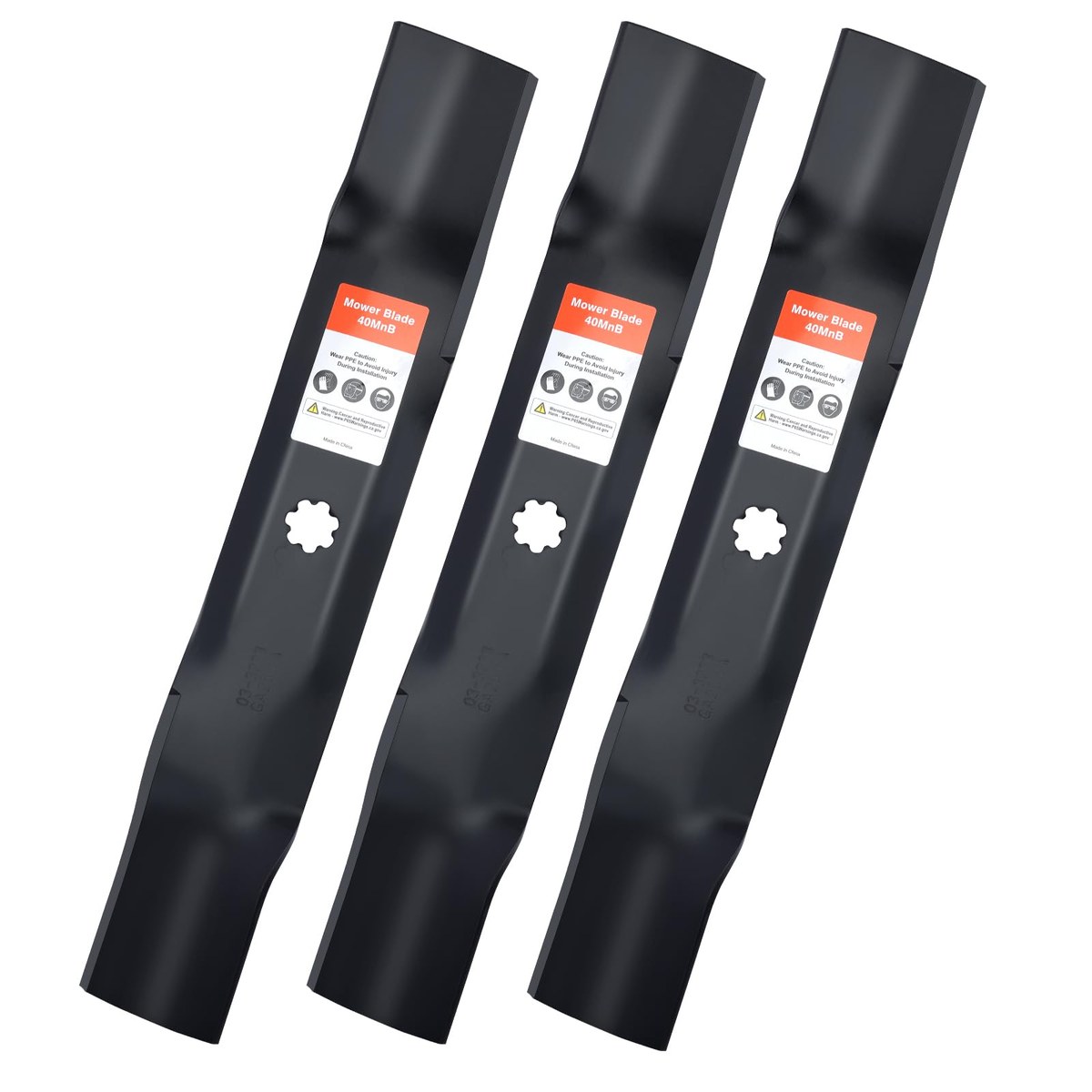

All photos are of the actual part — including our production photo and reference shots from the OEM application. Brand and model names are for fitment reference only.
Specifications
Cross-reference
Part Specification
| Material | 65Mn manganese steel |
| Hardness | 45–50 HRC |
| Deck size | 42"–48" |
| Center hole | 7-point star |
| Air lift | 1-3/16"(30mm) |
| Blade type | Mulching |
| Application | Lawn tractor |
| Length | 17-1/8"(435mm) |
| Width | 2-3/4"(70mm) |
| Thickness | 5/32"(4mm) |
| Inner box | Per OEM reference |
| Carton | Per OEM reference |
| Min. order | 300 pcs / SKU |
Replaces these part numbers
GX21784GY20852AM137757AM141035
Fitment
Which machines it fits
Type your mower model below to confirm this blade fits — before you enquire.
24 of 24 models
D140E140D160E170D150D155E150E160L120LA130LA140LA145LA155LA165S140S160S170X140X165X166X167Z245Z255Z355E
Notes for buyers
Fitting & compatibility notes
- Stop the guesswork! John Deere 48" Deck Zero Turn Mower uses two different blade types.Before ordering our blades,identify your original blade's Mounting Pattern.Our blade's Mounting Pattern is 7 Star Shaped.If your blade's Mounting Pattern is Circle Shaped,use MPN M145476 GY20568 to order your correct blades elsewhere.
- Fits For 48 Inch Mower Blades, Replaces Number: John Deere GX21784 GY20852 AM137757 AM141035.
- Fits For John Deere Mower Blades 48 Inch Deck, Compatible with 145 155C D140 D150 D155 D160 E140 E150 E160 E170 L120 LA130 LA140 LA145 LA155 LA165 S140 S160 S170 X140 X165 X166 X167 Z245 Z255 Z355E Lawn Tractor.
- NOTICE: The cutting edges are painted to prevent rust and protect your hands during installation. The paint will wear off as you mow the grass.
- ENSURE SUPERIOR PERFORMANCE: we conduct a series of rigorous tests, including the Rockwell Hardness Test, V-bend Test, Blade Chip Test, Balance Test, Performance Test, and Field Test.
